本機適用于電子業、PET，PP，PVC、偏光片、復合膜、粘膠、絕緣材料、屏蔽材料、3M，SONY，NITTO，TEST，PORON（橡膠）等特殊膠帶成型，以及LED.LCD、背光源、反光源（RW-100，RW-50，RF-188）散光膜（日本王子：90、75、60D204.D105.

DB642，CH19）、防靜電保護膜、黑白雙面膠、不透光鋁箔、增光膜、鐳射紙等的多次復合綜合加工。

This machine is suitable for electronics industry，PET，PP，PVC，polarizer，adhesive，insulation material，shielding material，3M，SONY，NITTO TEST，PORON（rubber）and other special tape molding，as well as multiple composite processing of LED.LCD，backlight，anti-light source.

（RW-100，RW-50，RF-188）astigmatism film（Japan Prince：90，75，60D204，D105，DB642，CH19），anti-static protective film，black and white double-sided adhesive tape，opaque aluminum foil，brightness enhancement film，laser paper and etc.

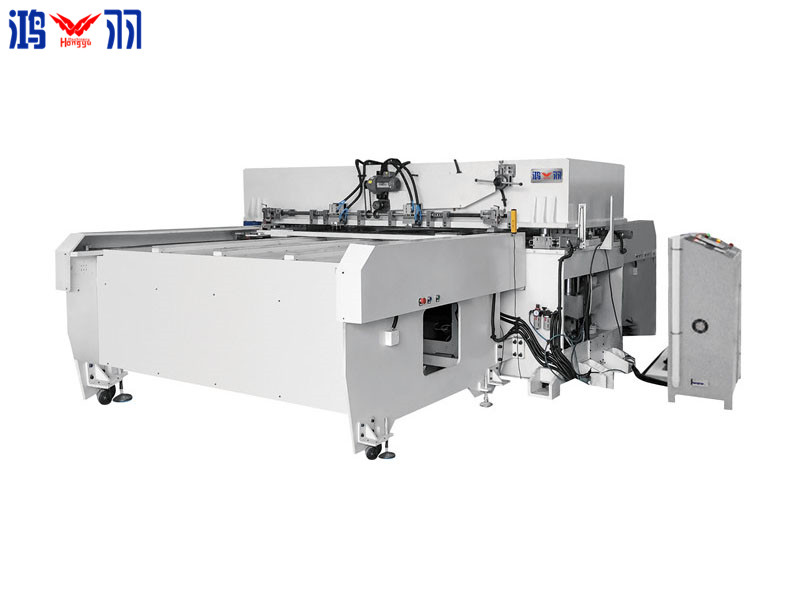

主機由上下壓板、四柱精 密導向機構、平衡機構和機架等組成。

上壓板設有自動刀模限位夾緊裝置，更換刀模方便快捷。

整機四柱精 確導向、連桿平衡、液壓驅動；各運動部件采用自動潤滑系統，保證機器的使用壽命及沖裁精度行程由編碼器控制，可在面板上進行設置，可配合刀模進行刀口高度的設定，使模切調整方便、精 確。

機器的上下兩個工作面采用精 密機械加工、熱處理、精磨等加工方式，可沖切不銹鋼板，模切壓力精度：±0.15mm。

The main unit is composed of upper and lower pressure plates，four-column precision guiding mechanism，balance mechanism and frame.

The upper platen is provided with an automatic die-cutting limit clamping device，which is convenient and quick to replace the die cutter.

The four-column precise quiding，connecting rod balance and hydraulic drive of the whole machine：each moving parts adopt automatic lubrication system to ensure the service life and punching precision of the machine.

The stroke is controlled by the encoder，which can be set on the panel.The cutter height can be set with the die to make the die cuttinc adjustment convenient and accurate.

The upper and lower working surfaces of the machine are processed by precision machining，heat treatment，fine grinding and etc；the stainless steel plate can be punched and the die cutting pressure accuracyis ±0.15mm.
